16ER AG55 CNC CNMG Carbide Threading Inserts

16ER AG55 Carbide CNC Cutting Tools Threading Insert Turning Insert

Technical Information:

• NPT threads for steam, gas and water pipes.
  Turning threads is a common operation on CNC machines. Using indexable tools to prune threads can achieve process security and high productivity.
  Machine feed is the most important factor in turning threads : it must be equal to the pitch, which is the distance between a point on the thread and the corresponding point on the adjacent thread. The fit between the pitch and the feed per revolution is accomplished by controlling the subroutine in the CNC machine.
  Thread turning should first consider 3 aspects to determine the best thread machining method and tool selection :
  Main parameters of the thread :
  External or internal threads
  Thread type
  Pitch
  Right or left hand thread
  Tolerance
  Workpiece material properties, shape and quantity
  Whether the workpiece is safely clamped
  Is there any problem with chip removal
  Workpiece batches
  Machine parameters
  High stability, power and torque requirements, especially for larger diameters

Feature Advantage:

• NPT standard thread series are available in various specifications and models.
• Observed under a microscope of 40 times, the perfect edge grinding and passivation accuracy.
• The workpiece angle error is controlled at ±0.5 degrees.
• High-quality cemented carbide substrate, high toughness, high wear resistance and versatility.
• High-precision tooth type for high-quality, high-precision thread machining of steel, stainless steel, and difficult-to-cut materials.
• Life is completely comparable to the first-line brands in Europe and America.

Type:

​

tips:

1.As cutting tools prices often fluctuate, the price on the site is not necessarily the current price. Contact us prior to purchase to confirm exact stock and price

2, due to the wide variety of cutting tools, if you need other models, please contact us.

3.Support multiple payment channels, 30 % advance payment

4. The minimum order quantity is 50 pieces and the package can be customized ( minimum order 500 pieces )

C

16ER AG55 Carbide Threading Inserts

cnc cnmg Carbide Threading Inserts

16ER AG55 cnc cnmg inserts

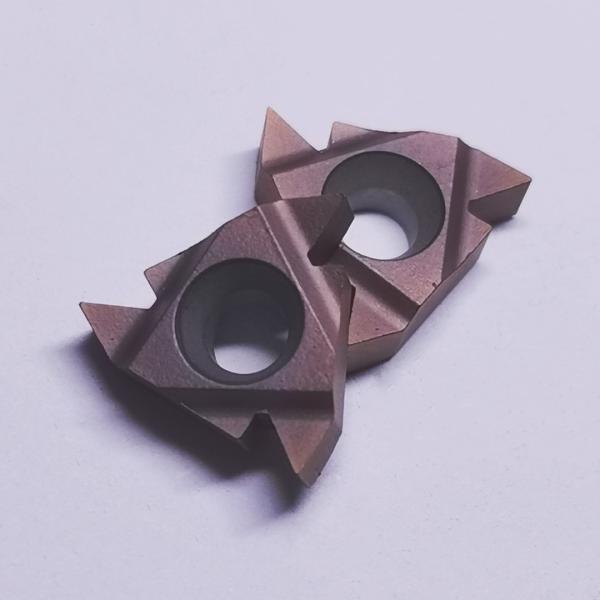

16ER AG55 CNC CNMG Carbide Threading Inserts Images
